- Lamp efficacy
Lamp efficacy
Ensuring the lamp efficiently converts electricity into light (lm/W).
- Ballast classification
Ballast classification
Controlling the electricity supply to the lamp (Energy Efficiency Index).
- Luminaire distribution
Luminaire distribution
Controlling light emission using optics which bend and shape the light to the correct location.
- System efficacy
System efficacy
Combining optical and thermal control within the luminaire (luminaire lm/W).
- Presence/absence detection
Presence/absence detection
Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.
- Daylight detection
Daylight detection
Artificial lighting which responds to the natural light conditions.
- Constant illuminance
Constant illuminance
A function designed to produce correct light levels for the duration of the maintenance period.
- Task-scene setting
Task-scene setting
Allowing the user to set scenes and adapt the lighting to different tasks.
- Timed off
Timed off
Automatic cut-off can be installed to turn all lights off during unoccupied hours.
- Task lighting
Task lighting
Lighting task areas with the correct amount of light.
- Zoning of lighting
Zoning of lighting
Lighting is zoned according to area use.
- Maintenance schedule
Maintenance schedule
Maintenance must be performed in response to product age, performance and environment.
- Waste light
Waste light
Eliminating waste light which does not hit the intended target.
- Reflectance
Reflectance
Taking advantage of light which is reflected from the surface within the space.
- Visible smart metering
Visible smart metering
Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.
The Arab American University of Jenin (AAUJ) is the first private Palestinian joint venture university, founded in year 2000, in collaboration with the California State University (CSU) in Stanislaus County. AAUJ serves the educational needs of over 9,000 students by providing a dynamic learning atmosphere that inspires innovation and has a primarily focus on every student’s success.

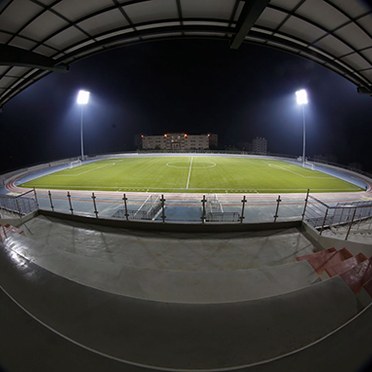

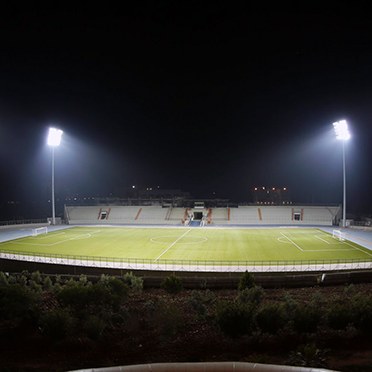

Thorn took on the project of illuminating the new stadium of the university. The initial design brief demanded for 1500 lux, which was changed later to 2000 lux as per the FIFA class IV for national televised events. The choice fell on the Mundial R floodlight with 2kW and Mundial C 2kW metal halide lamps. Nearly 320 projectors provide ideal colour TV coverage as well as shadow free and glare free pitch for excellent visibility. Furthermore the illumination helps to show close-up details of players, particularly their faces, at critical moments during the match.
The Mundial fittings are installed on a height of 46.6m and each mast contains 80 fittings. The rear access and automatic power interruption makes it easy to install and maintain. Furthermore the scenes can be easily changed via intelligent controls depending on the type of event taking place in the stadium, this ensures maximum power saving.
Key facts
- Lighting design: Ramadas Prabhu
- Lighting design Support: Nelca Roco
- Sales support: Bobby Sudhir
- Distributor: Technolight Engineering, Ramallah, Palestine
- Lighting Requirement: FIFA Class IV for National televised events
- Fitting Type: Mundial R 2kW and Mundial C 2kW
