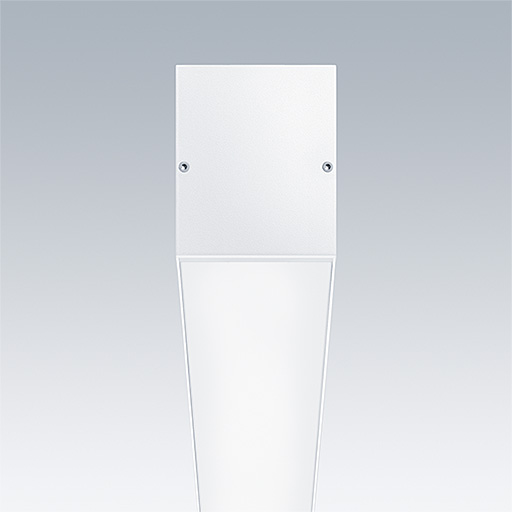

Equaline / EQL C L1500 PM WH

Equaline frameless channel with optics for 2nd generation Equaline. Body: powder coated aluminium, suitable for surface, suspended and plasterboard installation. For single and continuous installation. Optics: opal (PM) made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.

Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.

Dimensions: 1500 x 72 x 88 mm
Weight: 3.2 kg

Mode selection

Mode selection830 HF HO - 3000 K830 HFIX HO - 3000 K840 HF HO - 4000 K840 HFIX HO - 4000 K927-65 HFIX - 2700 K (2700-6500 K)3000 K HF3000 K HFIX4000 K HF4000 K HFIX3000 K HFIX E3D3000 K HFIX E3DUK4000 K HFIX E3D4000 K HFIX E3DUK

• Lamp position:4000 K HF
• Light Source:LED
• Luminaire luminous flux*:2980 lm
• Luminaire efficacy*:112 lm/W
• Colour Rendering Index min.:80
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:26.7 W Power factor = 0.95
