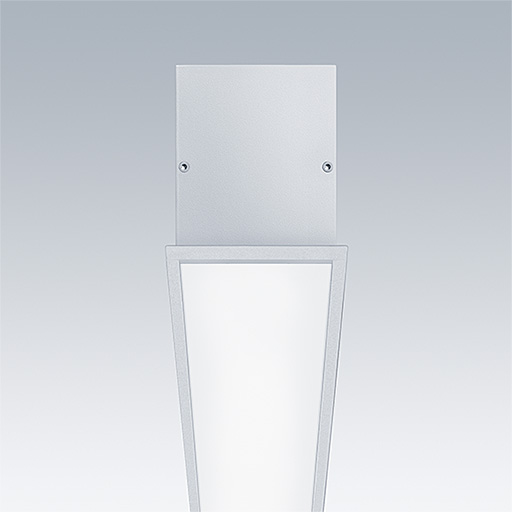

Equaline slim frame (FS) channel with optics for 2nd generation Equaline. Body: silver powder coated aluminium, suitable for plasterboard installation. For single and continuous installation. Optics: opal (PM) made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.

Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.

Dimensions: 1750 x 82 x 88 mm
Weight: 3.7 kg

Mode selection

Lamp position:4000 K HF
Light Source:LED
Luminaire luminous flux*:3220 lm
Luminaire efficacy*:105 lm/W
Colour Rendering Index min.:80
Correlated colour temperature*:4000 Kelvin
Chromaticity tolerance (initial MacAdam):3
Rated median useful life*:L90 50000 h at 25 °C
Luminaire input power*:30.6 W Power factor = 0.95

▼ Photometry

Photometric configuration

Layout

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data

Luminous flux(lm)

Height above WP(m)

Length of pendant(m)

Dimming level(%)

Step 2: Room Data

Length(m)

Width(m)

Height(m)

Working plane (WP)(m)

Maintenance factor

Reflection ceiling/wall/floor(%)

Name

Description

Step 3: Result

Illuminance(lx)

No.of Luminaires

Rows

Columns

Utilization factor(%)
