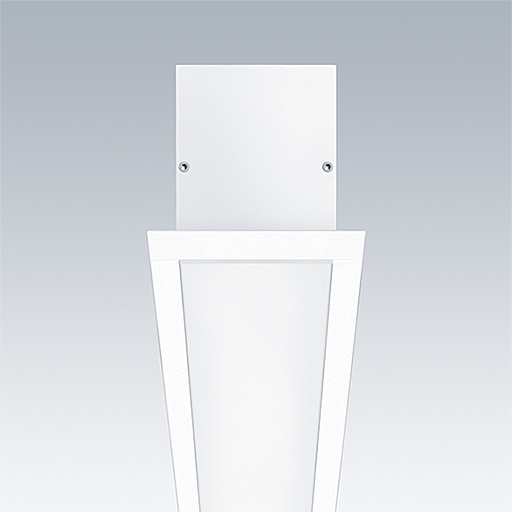

Equaline framed (F) channel with optics for 2nd generation Equaline. Body: powder coated aluminium, suitable for modular or plasterboard ceiling installation. For single and continuous installation. Optics: opal (PM) made of PMMA. Batten, end cap set and installation accessories to be ordered separately. Luminaire wired with halogen free leads.

Equaline consists of a channel, LED-batten, cover and accessories, which have to be configured and ordered separately. This product is one part of the complete configuration.

Dimensions: 2000 x 96 x 88 mm
Weight: 4.2 kg

Mode selection

Lamp position:4000 K HF
Light Source:LED
Luminaire luminous flux*:3970 lm
Luminaire efficacy*:115 lm/W
Colour Rendering Index min.:80
Correlated colour temperature*:4000 Kelvin
Chromaticity tolerance (initial MacAdam):3
Rated median useful life*:L90 50000 h at 25 °C
Luminaire input power*:34.4 W Power factor = 0.95
