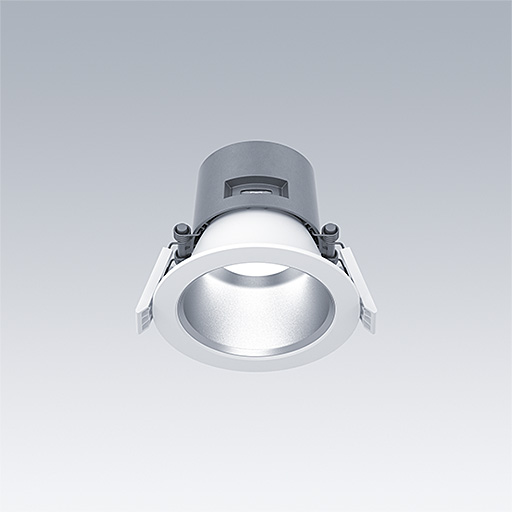

Chalice 3 / CHAL3 100 800-940 HFIX RSB

A highly efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to mm and Ø100mm cut-out with spring clips. Remote, pluggable, DALI-2 dimmable LED driver with DC functionality, adjustable 1-100 %, NFC configurable, SwitchDIM compatible.Loop in - loop out possible. Body: die-cast aluminium for highly efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in satinbrite finish with wide beam. Class II electrical, IP54_IP20. Complete with 4000K LED



Dimensions: Ø119 x 95 mm
Luminaire input power: 8.5 W
Luminaire luminous flux: 810 lm
Luminaire efficacy: 95 lm/W
Weight: 0.5 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:810 lm
• Luminaire efficacy*:95 lm/W
• Colour Rendering Index min.:90
• Ballast:1 x 28003811 LC 25/200-650/38 o4a NF SR EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:8.5 W Power factor = 0.78
• Dimming:Dali2Dim dimmable to 1%
• Maintenance category CIE 97:C - Closed Top Reflector
