  • Chalice 3 — CHAL3 150 2000-830 EHF E3 RMB

Chalice 3 / CHAL3 150 2000-830 EHF E3 RMB

93901052

▼ Data Sheet

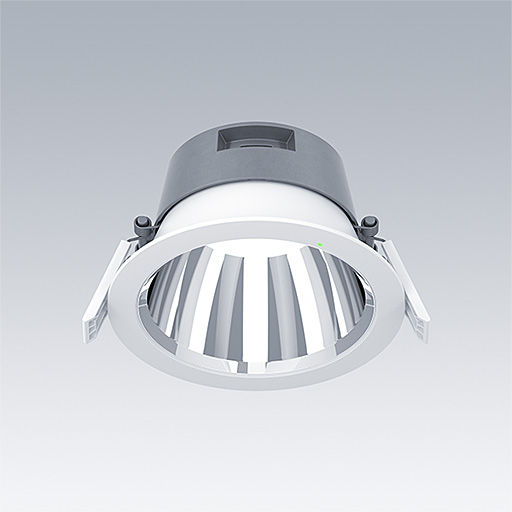

A high efficient and sustainable LED downlight with low height. Suitable for mounting in ceiling thicknesses of 1 to 40 mm and Ø150mm cut-out with spring clips. Remote, pluggable, Fixed output LED driver NFC configurable with 3 hour, manual test, emergency lighting circuit. Body: die-cast aluminium for high efficient thermal management with recycling content >90%. Diffuser: polycarbonate. Reflector and trim: polycarbonate smooth reflector in high glossy finish for improved glare control in office applications. Class II electrical, IP54_IP20. Complete with 3000K LED



Dimensions: Ø174 x 94 mm
Luminaire input power: 19.8 W
Luminaire luminous flux: 2082 lm
Luminaire efficacy: 105 lm/W
Weight: 1.13 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:2082 lm
  • Total emergency luminous flux:370 lm
  • Luminaire efficacy*:105 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:19.8 W Power factor = 0.81
  • Dimming:FIX
  • Maintenance category CIE 97:C - Closed Top Reflector
