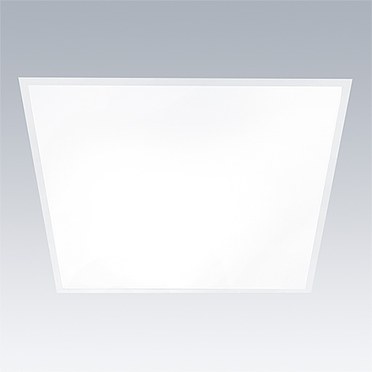

Caro 2
Integrated backlit LED panel provides comfortable, good quality of light and significant energy and maintenance savings.
- Back-lit LED panel with lightweight design and low installation depth
- High uniformity micro-prismatic diffuser, UGR<19: gentle, soft and glare-free lighting
- Replaces conventional luminaires with 4×18 W T8 and 2×36 W T8 and offers more than 40% energy saving. Ideal solution for refurbishment and new installation
- Long 50,000 hours lifetime, reduced maintenance cost
- Supplied with remote driver, suitable for recessed mounting in T-bar ceiling grids
- On/off and DALI dimmable versions available
Materials and Finish
Frame: aluminium, white finish (RAL9003)
Diffuser: micro-prismatic diffuser
Light guide panel: high uniformity PS diffuser
Backplate: steel, white finish (RAL9003)
Installation and Mounting
Suitable for recessed lay-in installation in T-bar ceiling grids.
Specification
To specify state:
Integrated backlit LED Panel with micro-prismatic homogenous light emitting surface. Comfortable, glare free light with UGR <19 for schools and offices application. Total luminous flux: 3900 lm, Luminaire input power: 38W, correlated colour temperature (CCT) 4000K. Lifetime: 50,000hrs @L80, Colour Rendering: CRI > 80. Remote On/off driver or DALI dimmable driver available. IP40 from below. Suitable for lay-in installation.
As Thorn Caro 2
▼ Caro 2
| Description | Type | Wt (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| CARO2 Q596 3900 840 | LED | 1.47 | 22675189 | ||||||
| CARO2 Q596 3900 840 HFX | LED | 1.61 | 22675191 |
