  • Caro 2 — CARO2 Q596 3900 840 HFX

Caro 2 / CARO2 Q596 3900 840 HFX

22675191

▼ Data Sheet

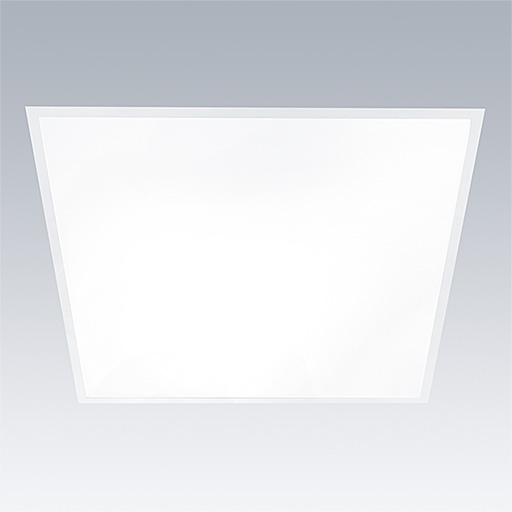

Integrated backlit LED Panel with micro-prismatic homogenous light emitting surface. Comfortable, glare free light with UGR <19 for schools and offices application. Class II electrical, IP40, Impact strength: IK03. Body: white aluminium. Remote DALI dimmable driver.. Suitable for lay-in installation.

Total luminous flux: 3900 lm
Luminaire input power: 38 W
Luminaire efficacy: 103 lm/W
Dimensions: 596 x 596 x 33 mm
Weight: 1.61 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3912 lm
  • Luminaire efficacy*:103 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x LED_Con
  • Luminaire input power*:38 W Power factor = 0.9
  • Dimming:DaliDim dimmable to 1%
  • Maintenance category CIE 97:D - Enclosed IP2X

▼ Photometry

Photometric configuration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Step 1: Technical data
(lm)
(m)
(m)
(%)
Step 2: Room Data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
