Omega Pro 2 / OP2 4400-927-65 CKIT+ HX BC Q600

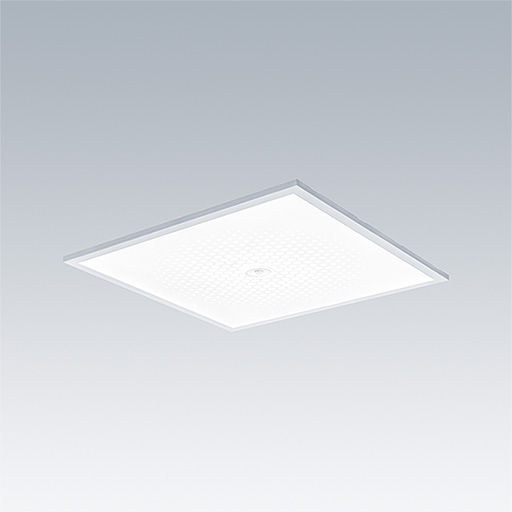

A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Wireless connection via app with Bluetooth® 4.x - basicDIM Wireless. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with VCT technology (variable colour temperature), stepless tunable from 2700-6500K, DT8., Colour Rendering Index min.: 90

Radio definition: basicDIM Wireless - Bluetooth® 4.x, Radio frequency: 2.4...2.483 GHz, Radio power: +4 dBm.


Dimensions: 597 x 597 x 57 mm
Luminaire input power: 48.2 W
Luminaire luminous flux: 4450 lm
Luminaire efficacy: 92 lm/W
Weight: 5.44 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:4450 lm
• Luminaire efficacy*:92 lm/W
• Colour Rendering Index min.:90
• Ballast:1 x 28001909 LCA 50W 350-1050mA DT8 lp PRE
• Chromaticity tolerance (initial MacAdam):3
• Rated median useful life*:L90 50000 h at 25 °C
• Luminaire input power*:48.2 W Power factor = 0.97
• Standby Power*:0.2 W
• Dimming:BC dimmable to 10%
• Radio definition: basicDIM Wireless - Bluetooth® 4.x
• Radio frequency: 2.4...2.483 GHz
• Radio power: +4 dBm
• Maintenance category CIE 97:D - Enclosed IP2X
• Total harmonic distortion (THD):9.42 %
