Graffiti

  • Graffiti
  • Graffiti
  • Graffiti
  • Graffiti

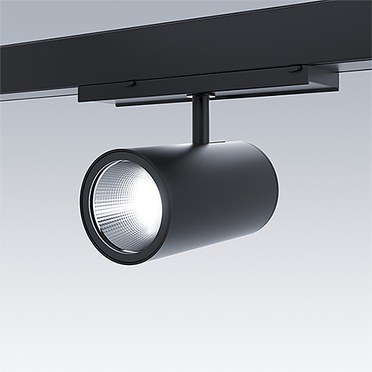

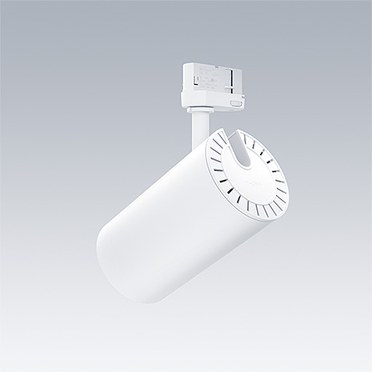

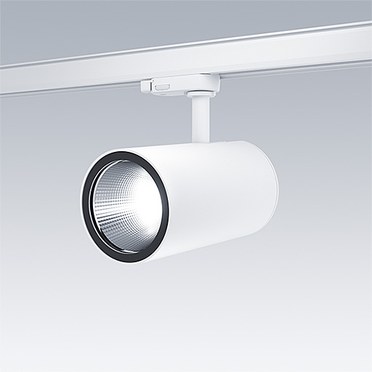

LED spotlight for 3-phase track installations or CONTUS continuous-row systems

  • GRAFFITI offers two lumen packages in one compact size (Ø95mm) 2800lm and 3600lm in CRI>90 and in two colour temperatures 3.000K and 4.000K
  • Available for both key lighting infrastructures: 3-phase track and Thorn CONTUS trunking
  • High-quality, low-glare spotlight for Retail applications with up to 130lm/W for reduced energy cost
  • Integrated in-house driver for an overall clean design aesthetic

Materials and Finish

Housing: Die-cast aluminium
Colour: Black or white microtextured paint
Fronting: Black
Reflector: Aluminium sputtered PC reflector

Installation and Mounting

3GU version: spotlight can be installed and de-installed tool free via 3-phase track adapter
Wall mounting not permitted; not suitable for point outlet
CONTUS version: spotlight fixed via CONTUS to the trunking using CLIX technology

Specification

To specify state:
LED spotlight with stabilised colour temperature (warm white / cool white), optimised for high-output accent lighting. Switchable luminaire, correlated colour temperature is 3000/4000K with CRI>90 and a chromaticity tolerance of 3. Lifetime is 50,000 hours (L70). Spotlight rotatable through 360°and pivotable through 90°. Aluminium sputtered PC reflector, highly specular, iridescence-free, designed to be interchangeable and retrofitted.
3GU version: can be installed and de-installed tool-free via 3-phase track adapter
CONTUS version: spotlight fixed via CONTUS adapter plate to the trunking using CLIX technology
As Thorn Graffiti

New Product
LumExpress Product
eControl Product

▼ Graffiti, 3GU spot

Description   TypeWt (kg)SAP Code
GRAFFITI 2800-930HE SWI 3GU SP BKLED0.7196108753
GRAFFITI 2800-930HE SWI 3GU SP BK 12XLED0.7196108717
GRAFFITI 2800-930HE SWI 3GU SP WHLED0.7196108750
GRAFFITI 2800-930HE SWI 3GU SP WH 12XLED0.7196108714
GRAFFITI 2800-940HE HF 3GU SP WH 12XLED0.7196108720
GRAFFITI 2800-940HE SWI 3GU SP BKLED0.7196108759
GRAFFITI 2800-940HE SWI 3GU SP BK 12XLED0.7196108723
GRAFFITI 2800-940HE SWI 3GU SP WHLED0.7196108756
GRAFFITI 3600-930HE SWI 3GU SP BKLED0.7196108765
GRAFFITI 3600-930HE SWI 3GU SP BK 12XLED0.7196108729
GRAFFITI 3600-930HE SWI 3GU SP WHLED0.7196108762
GRAFFITI 3600-930HE SWI 3GU SP WH 12XLED0.7196108726
GRAFFITI 3600-940HE SWI 3GU SP BKLED0.7196108771
GRAFFITI 3600-940HE SWI 3GU SP BK 12XLED0.7196108735
GRAFFITI 3600-940HE SWI 3GU SP WHLED0.7196108768
GRAFFITI 3600-940HE SWI 3GU SP WH 12XLED0.7196108732

▼ Graffiti, 3GU flood

Description   TypeWt (kg)SAP Code
GRAFFITI 2800-930HE SWI 3GU FL BK 12XLED0.7196108718
GRAFFITI 2800-930HE SWI 3GU FL WHLED0.7196108751
GRAFFITI 2800-930HE SWI 3GU FL WH 12XLED0.7196108715
GRAFFITI 2800-940HE SWI 3GU FL BKLED0.7196108760
GRAFFITI 2800-940HE SWI 3GU FL BK 12XLED0.7196108724
GRAFFITI 2800-940HE SWI 3GU FL WHLED0.7196108757
GRAFFITI 2800-940HE SWI 3GU FL WH 12XLED0.7196108721
GRAFFITI 3600-930HE SWI 3GU FL BKLED0.7196108766
GRAFFITI 3600-930HE SWI 3GU FL BK 12XLED0.7196108730
GRAFFITI 3600-930HE SWI 3GU FL WHLED0.7196108763
GRAFFITI 3600-930HE SWI 3GU FL WH 12XLED0.7196108727
GRAFFITI 3600-940HE SWI 3GU FL BKLED0.7196108772
GRAFFITI 3600-940HE SWI 3GU FL BK 12XLED0.7196108736
GRAFFITI 3600-940HE SWI 3GU FL WHLED0.7196108769
GRAFFITI 3600-940HE SWI 3GU FL WH 12XLED0.7196108733

▼ Graffiti, 3GU wide flood

Description   TypeWt (kg)SAP Code
<GRAFFITI 2800-940HE SWI 3GU WFL BKLED0.7196108761
GRAFFITI 2800-930HE SWI 3GU WFL BKLED0.7196108755
GRAFFITI 2800-930HE SWI 3GU WFL BK 12XLED0.7196108719
GRAFFITI 2800-930HE SWI 3GU WFL WHLED0.7196108752
GRAFFITI 2800-930HE SWI 3GU WFL WH 12XLED0.7196108716
GRAFFITI 2800-940HE SWI 3GU WFL BK 12XLED0.7196108725
GRAFFITI 2800-940HE SWI 3GU WFL WHLED0.7196108758
GRAFFITI 2800-940HE SWI 3GU WFL WH 12XLED0.7196108722
GRAFFITI 3600-930HE SWI 3GU WFL BKLED0.7196108767
GRAFFITI 3600-930HE SWI 3GU WFL BK 12XLED0.7196108731
GRAFFITI 3600-930HE SWI 3GU WFL WHLED0.7196108764
GRAFFITI 3600-930HE SWI 3GU WFL WH 12XLED0.7196108728
GRAFFITI 3600-940HE SWI 3GU WFL BKLED0.7196108773
GRAFFITI 3600-940HE SWI 3GU WFL BK 12XLED0.7196108737
GRAFFITI 3600-940HE SWI 3GU WFL WHLED0.7196108770
GRAFFITI 3600-940HE SWI 3GU WFL WH 12XLED0.7196108734

▼ Graffiti, CONT spot

Description   TypeWt (kg)SAP Code
GRAFFITI 3600-930HE SWI CONT SP BKLED0.8596108777
GRAFFITI 3600-930HE SWI CONT SP BK 12XLED0.8596108741
GRAFFITI 3600-930HE SWI CONT SP WHLED0.8596108774
GRAFFITI 3600-930HE SWI CONT SP WH 12XLED0.8596108738
GRAFFITI 3600-940HE SWI CONT SP BKLED0.8596108783
GRAFFITI 3600-940HE SWI CONT SP BK 12XLED0.8596108747
GRAFFITI 3600-940HE SWI CONT SP WHLED0.8596108780
GRAFFITI 3600-940HE SWI CONT SP WH 12XLED0.8596108744

▼ Graffiti, CONT wide flood

Description   TypeWt (kg)SAP Code
GRAFFITI 3600-930HE SWI CONT WFL BKLED0.8596108779
GRAFFITI 3600-930HE SWI CONT WFL BK 12XLED0.8596108743
GRAFFITI 3600-930HE SWI CONT WFL WHLED0.8596108776
GRAFFITI 3600-930HE SWI CONT WFL WH 12XLED0.8596108740
GRAFFITI 3600-940HE SWI CONT WFL BKLED0.8596108785
GRAFFITI 3600-940HE SWI CONT WFL BK 12XLED0.8596108749
GRAFFITI 3600-940HE SWI CONT WFL WHLED0.8596108782
GRAFFITI 3600-940HE SWI CONT WFL WH 12XLED0.8596108746

▼ Graffiti, accessories

Description   Wt (kg)SAP Code
<GRAFFITI HONEYCOMB LOUVRE BK0.0396108656
<GRAFFITI PROTECTION GLASS0.0496108657
