Graffiti / GRAFFITI 3600-940HE SWI CONT SP WH 12X

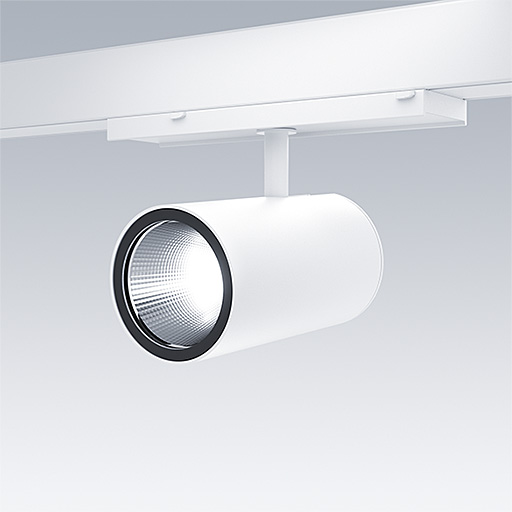

LED spotlight for CONTUS continuous-row systems with spot light distribution and stabilized color temperature. Electronic, switchable luminaire control gear. Class II electrical, IP20. Luminaire with CONTUS adapter for simple, rapid mounting of luminaire to CONTUS continuous-row systems. Body: die-cast aluminium white micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 337° and pivotable through 90°. Complete with 4000K LED, maximum efficiency

This article is bulk packed and contains twelve pieces. The article code has to be ordered as a multiple of twelve (12/24/36/48/60…). All the data on the datasheet refer to a single article.

Dimensions: Ø95 x 204 mm
Luminaire input power: 27 W
Luminaire luminous flux: 3500 lm
Luminaire efficacy: 130 lm/W
Weight: 0.85 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:3500 lm
• Luminaire efficacy*:130 lm/W
• Colour Rendering Index min.:90
• Ballast:1 x 06891816 DRV OS IT FIT 30W 700mA 42V F
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):2
• Rated median useful life*:L80 50000 h at 25 °C
• Luminaire input power*:27 W Power factor = 0.96
• Dimming:SWI
• Maintenance category CIE 97:D - Enclosed IP2X
