Tonic / TONIC XS 1700-940 3GU SP WH

96638004

Data Sheet

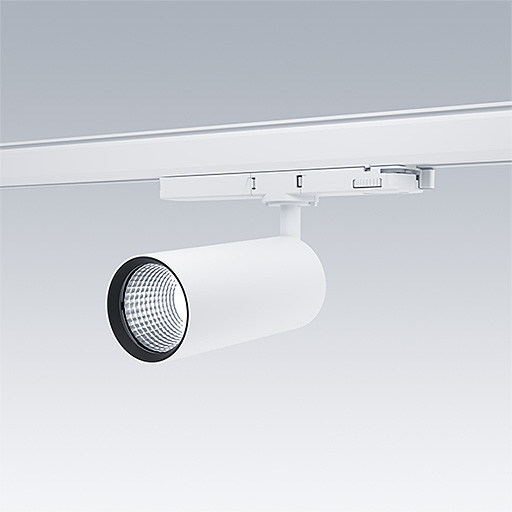

LED spotlight for 3 phase track installations with spot light distribution and stabilized color temperature. Electronic, fixed output control gear. Class II electrical, IP20. Body: die-cast aluminium white micro-textured paint. Reflector: PC sputtered. Spotlight rotatable through 360° and pivotable through 90°. Complete with 4000K LED



Dimensions: Ø55 x 125 mm
Luminaire input power: 14.3 W
Luminaire luminous flux: 1581 lm
Luminaire efficacy: 111 lm/W
Weight: 0.4 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1581 lm
  • Luminaire efficacy*:111 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 50000 h at 25 °C
  • Ballast:1x HF_
  • Luminaire input power*:14.3 W Power factor = 0.9
  • Dimming:Fixed output
  • Maintenance category CIE 97:D - Enclosed IP2X

Photometry

Photometric configuration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
