IQ Wave SP

  • IQ Wave SP
  • IQ Wave SP

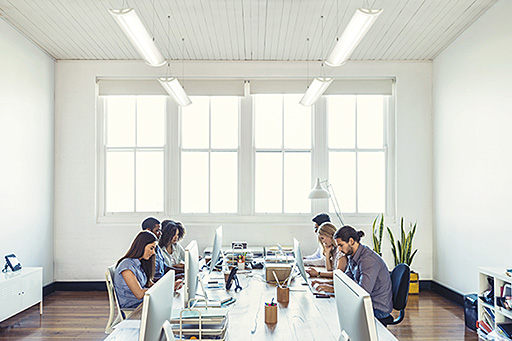

Comfort without compromise for office & education. A logical range extension to the IQ wave family for surface and suspended

  • Design: Form follows function. Simple and flowing lines create a modern but simplistic aesthetic.
  • Optics: Innovative and Thorn patented MV tech optic offers excellent uniformity and glare control, direct/indirect light for illuminance on faces and walls to encourage a comfortable, communicative working environment.
  • Controls: Integrated sensors allow you to create flexible control systems suited to your needs. Wireless solution controlled via App with Bluetooth® 4.x - basicDim Wireless. Also available are integrated PIR and microwave sensors.
  • Additional sensor, controls, wireless, wiring and mounting options are available through myProduct
  • Versions adapted for mounting onto Contus trunking available.

Materials and Finish

Frame and end caps: polycarbonate.
Diffuser and body: polycarbonate, aluminium heatsink.
Gear tray: pre-coated white steel with polycarbonate endcaps.
Contus adapter: pre-coated roll form steel, white (similar to RAL9016).

Installation and Mounting

Suspended:
Suitable for suspension with included Y suspension Kit and pre-assembled power cord.
Surface:
Suitable for direct surface or BESA mounting, central or end-cap cable entries.
Continuous run:
Standard products can be connected via optional continuous run Kit. Through wiring versions are available.
Contus Trunking:
Versions adapted for Contus trunking come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.

Specification

To specify state:
A lightweight surface or suspended luminaire with MV Tech Optic. LED indirect light source. Possibility to install as continuous run; BESA installation and through wiring. Indirect/Direct split of 23/77 (HU 60/40) ; 3000K/4000K colour temperature, CRI>80 and a lifetime of 50 000 hours @ L90 Ta 25°C including high efficacy at 123 lm/W, UGR<19. With control systems, PIR, MWS, BC.
As Thorn IQ Wave surface/suspended.

New Product
LumExpress Product
eControl Product

IQ Wave Surface, dimmable

IQ Wave Surface, dimmable (variants)

IQ Wave Surface, dimmable, emergency

IQ Wave Surface

IQ Wave Surface, emergency

IQ Wave Surface, sensor

IQ Wave Suspended, dimmable

IQ Wave Suspended, dimmable (variants)

Description   TypeWt (kg)SAP Code
IQ SUSP S LED4900-840 BC ML3LED4.5096631046
IQ SUSP S LED6700-840 BC ML3LED4.5096631047

IQ Wave Suspended, dimmable, emergency

IQ Wave Suspended, dimmable, through wiring

IQ Wave Suspended, Contus

IQ Wave Suspended, basicDIM, emergency

Description   TypeWt (kg)SAP Code
IQ SUSP S LED6700-840 BC E3 ML4LED5.0092902253

IQ Wave Suspended

IQ Wave Suspended, emergency

IQ Wave Suspended, sensor

Description   TypeWt (kg)SAP Code
IQ SUSP S LED6700-830 HFSX ML5LED4.5096629307

IQ Wave Suspended, through wiring

Description   TypeWt (kg)SAP Code
IQ SUSP S LED2600-840 HF TW6LED5.2092901666

IQ Wave Accessories

IQ Wave, Infill panels
