  • Punch — PUNCH 3 LV MSC 4000-940 L12 HFIX

Punch / PUNCH 3 LV MSC 4000-940 L12 HFIX

96635717

▼ Data Sheet

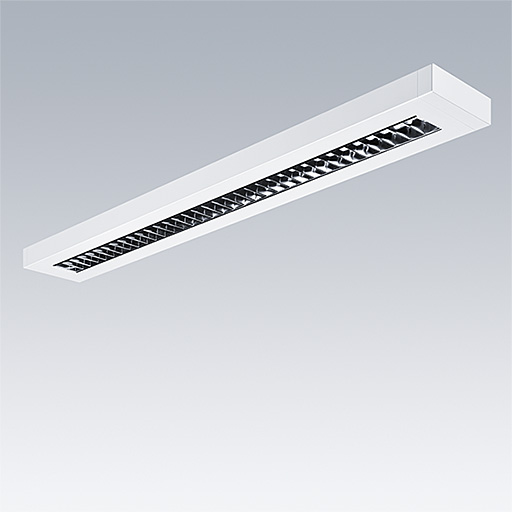

A slim, surface mounted luminaire with direct distribution. DALI dimmable Electronic,. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Louvre: glossy aluminium,. Class I electrical, IP20, Impact strength: IK03. Electrical connection via piano key terminal block. Complete with 4000K LED.

Can be used as a suspended direct only luminaire when combined with Y-Suspension connector and suspension kit (to be ordered separately 22171581 & 22171349).

Dimensions: 1301 x 162 x 56 mm
Luminaire input power: 29 W
Luminaire luminous flux: 4000 lm
Luminaire efficacy: 138 lm/W
Weight: 3.8 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:4000 lm
  • Luminaire efficacy*:138 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L80 70000 h at 25 °C
  • Ballast:1x HFI*
  • Luminaire input power*:29 W
  • Dimming:DaliDim
  • Maintenance category CIE 97:D - Enclosed IP2X
