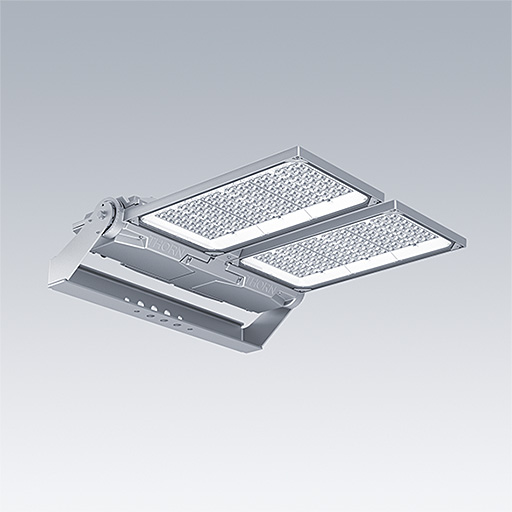

Areaflood Pro 2 / AFP2 2L 216L50-740 A4 CL1 GY

A compact, lightweight, general purpose LED area floodlight. With large x 2 body. LED converter driving 216 LEDs at 500mA with Asymmetrical 40° light distribution. IP66, IK08, Class I electrical. Body: die-cast aluminium (EN AC-44300), Light grey 150 sanded textured (close to RAL9006).. Enclosure: 5mm thick toughened glass. Reversable mounting stirrup supplied, Complete with 4000K LED.

Integrated 6kV surge protection included as standard, with higher 10kV protection when selected (designated by ‘SP’ in the description).


Dimensions: 780 x 722 x 116 mm
Luminaire input power: 312 W
Luminaire luminous flux: 53823 lm
Luminaire efficacy: 173 lm/W
weight: 28.1 kg
Scx: 0.136 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:53823 lm
• Luminaire efficacy*:173 lm/W
• Colour Rendering Index min.:70
• Ballast 1:1 x 87500826 LCO 135/200-1050/220 NF C ADV3
• Ballast 2:2 x 87500991 LCO 165/200-1050/285 o4a NF C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated median useful life*:L95 100000 h at 25 °C
• Luminaire input power*:312 W Power factor = 0.95
