  • Olsys Area — OLSYS2 48L70 730 CL2 AREA A/S

Olsys Area / OLSYS2 48L70 730 CL2 AREA A/S

96633557

▼ Data Sheet

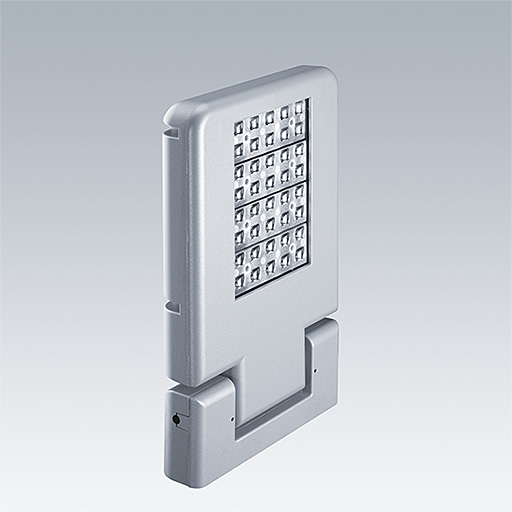

An LED floodlight with asymmetric distribution for area lighting applications. Electronic, fixed output control gear. Class II electrical, IP66, IK08. Body: die-cast aluminium (AS9U), powder coated silver-grey (RAL 9006). Enclosure: tempered glass. Optics: aluminium. Supplied in one box, ready to install. Mounting attachments to be ordered separately. Complete with 3000K LED

ambient temperature: -30°C to +50°C

Dimensions: 505 x 337 x 76 mm
Luminaire input power: 104.5 W
Weight: 9.85 kg
Scx: 0.17 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:13030 lm
  • Luminaire efficacy*:125 lm/W
  • Colour Rendering Index min.:70
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):4
  • Rated median useful life*:L90 50000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:104.5 W
  • Dimming:Fixed output
