  • Thor — TR 72L50-740 RWT BP CL2 FD W9 L60E

Thor / TR 72L50-740 RWT BP CL2 FD W9 L60E

96643964

▼ Data Sheet

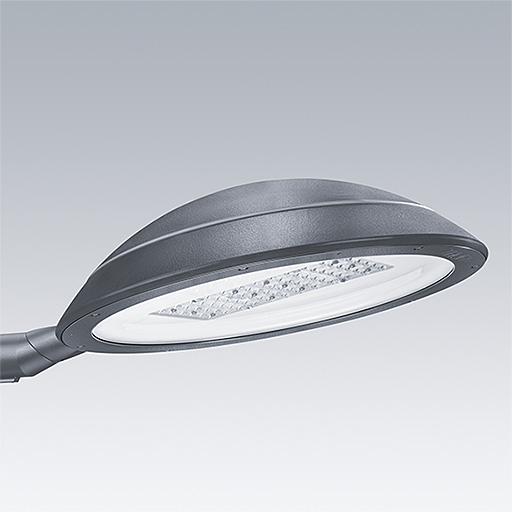

A large size, smart urban LED lantern with 72 LEDs driven at 500mA with Wet Road optic and UV stabilised polycarbonate dome with anthracite finish (close to RAL7043). Class II electrical, IP66, IK08. Body, bracket and ring: die-cast aluminium (AS12U, LM6 equivalent, EN AC-44300) treated against corrosion, powder coated anthracite (close to RAL7043). Enclosure: 4mm toughened flat glass. Screws and closing set: stainless steel. Pre-wired with 9m cable. Side entry mounting to Ø60mm spigot, tilt 0°, adjustable from -15° to +10°. Equipped with power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. Complete with 4000K LED.

Dimensions: Ø577 x 155 mm
Luminaire input power: 108.5 W
Luminaire luminous flux: 17489 lm
Luminaire efficacy: 161 lm/W
Weight: 14.8 kg
Scx: 0.044 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:17489 lm
  • Luminaire efficacy*:161 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 28003163 LCO 135/200-1050/ 220 o4a NF C EXC3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L90 100000 h at 25 °C
  • Luminaire input power*:108.5 W
  • Dimming:FO

▼ Photometry

Photometric configuration
