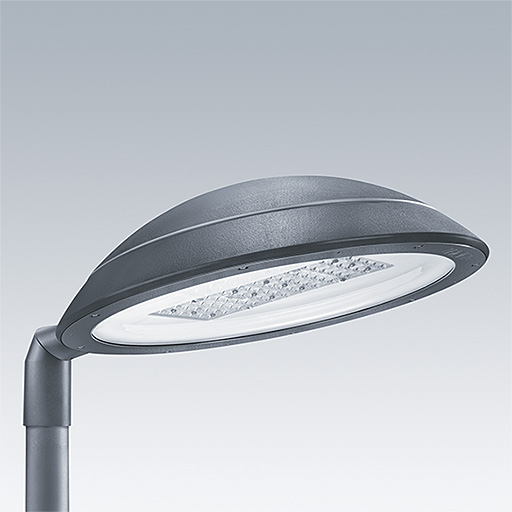

Thor / TR 48L50-740 NR BP CLO CL2 FD W9 T60E

A large size, smart urban LED lantern with 48 LEDs driven at 500mA with Narrow Road optic and UV stabilised polycarbonate dome with anthracite finish (close to RAL7043). Class II electrical, IP66, IK08. Body, bracket and ring: die-cast aluminium (AS12U, LM6 equivalent, EN AC-44300) treated against corrosion, powder coated anthracite (close to RAL7043). Enclosure: 4mm toughened flat glass. Screws and closing set: stainless steel. Pre-wired with 9m cable. Post top mounting to Ø60mm column, tilt 0°, adjustable from -15° to +10°. Equipped with power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight, driver programmed for constant light output. Complete with 4000K LED.

Dimensions: Ø577 x 155 mm
Luminaire input power: 73.1 W
Luminaire luminous flux: 11698 lm
Luminaire efficacy: 160 lm/W
Weight: 13.9 kg
Scx: 0.044 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:11698 lm
• Luminaire efficacy*:160 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 28003162 LCO 90/200-1050/165 o4a NFC C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated median useful life*:L90 100000 h at 25 °C
• Luminaire input power*:73.1 W
• Dimming:FO
