Contrast / CONT3 4L REC BOX GL 30x30x31 5621C3XS
96634419
▼ Data Sheet

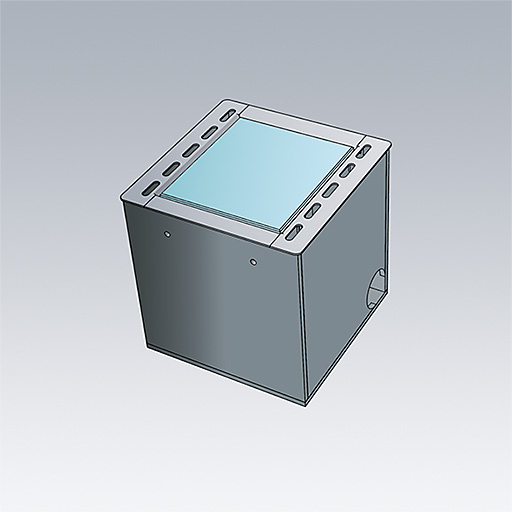

Ground recessing box incorporating drainage access, and the rails to enable floodlight mounting and positional/angular adjustments. A high load-bearing capacity and an easy installation provides a long life durability. Walk-over only. Box: cast concrete, frame and screws: stainless steel, glass: tempered. IK09.
Installation: Ø70mm holes for power supply and drainage , Ensure a stabilized and efficient draining soil. Contrast to be fixed on the rail on the vertical side with HH M10 stainless steel screws. Glass fixation with HSHC M6 stainless steel screws.
Recessed box dedicated to Contrast small
Dimensions: 300 x 300 x 310 mm
Weight: 14 kg
Maximum static load capacity: 2500 kg. Based on rupture point for glass.
