Aerie / ARS 18L50-740 RS CL-D CL2 W5 T60 ANT

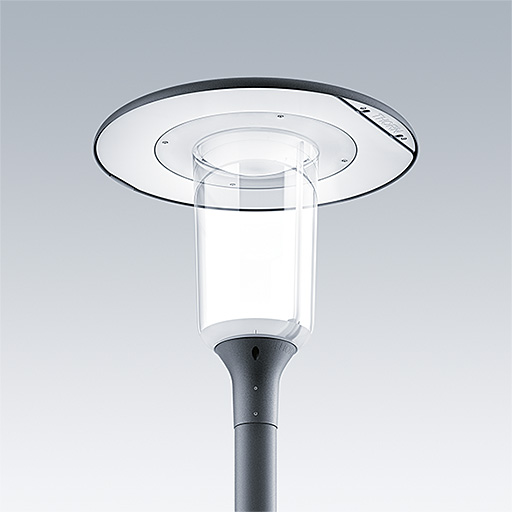

A discreet, post top LED lantern with a timeless design. LED driver for 18 LEDs, driven at 500mA with radially symmetric distribution. Class II electrical, IP66, IK10. Canopy and base: corrosion resistant die-cast powder coated aluminium suitable for C5 environments, finished textured anthracite (close to RAL7043). Enclosure: slim UV stabilised polycarbonate with clear finish. Fitted with internal diffuser to reduce glare. Complete with 4000K LED. Post top mounting to Ø60mm column. Pre-wired with 5m cable.

Dimensions: Ø602 x 586 mm
Luminaire input power: 28 W
Luminaire luminous flux: 3703 lm
Luminaire efficacy: 132 lm/W
Weight: 11.07 kg
Scx: 0.172 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:3703 lm
• Luminaire efficacy*:132 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 87500877 LCO 40/200-1050/64 NF C ADV3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L95 100000 h at 25 °C
  L90 100000 h at 50 °C
• Luminaire input power*:28 W Power factor = 0.97
• Dimming:PROG
