  • Aerie — ARW 12L70-740 WSC CL CL2 W5 T60 ANT

Aerie / ARW 12L70-740 WSC CL CL2 W5 T60 ANT

96632762

▼ Data Sheet

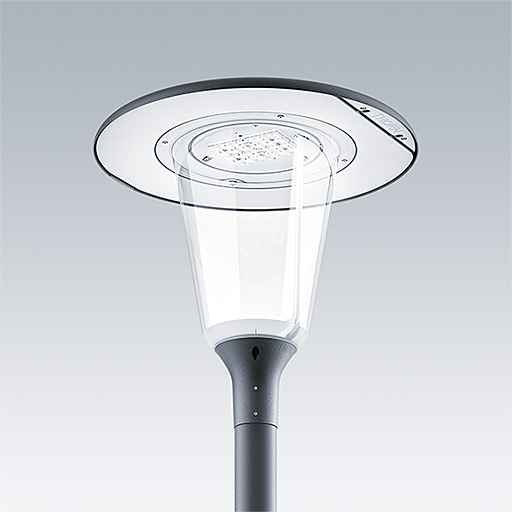

A discreet, post top LED lantern with a timeless design. LED driver for 12 LEDs, driven at 700mA with Wide Street Comfort (asymmetrical) distribution. Class II electrical, IP66, IK10. Canopy and base: corrosion resistant die-cast powder coated aluminium suitable for C5 environments, finished textured anthracite (close to RAL7043). Enclosure: wide UV stabilised polycarbonate with clear finish. Complete with 4000K LED. Post top mounting to Ø60mm column. Pre-wired with 5m cable.

Dimensions: Ø602 x 586 mm
Luminaire input power: 27 W
Luminaire luminous flux: 3960 lm
Luminaire efficacy: 147 lm/W
Weight: 10.95 kg
Scx: 0.172 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:3960 lm
  • Luminaire efficacy*:147 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500877 LCO 40/200-1050/64 NF C ADV3
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L95 100000 h at 25 °C
    L90 100000 h at 50 °C
  • Luminaire input power*:27 W Power factor = 0.97
  • Dimming:PROG
