Avenue F2

  • Avenue F2
  • Avenue F2
  • Avenue F2
  • Avenue F2
  • Avenue F2
  • Avenue F2

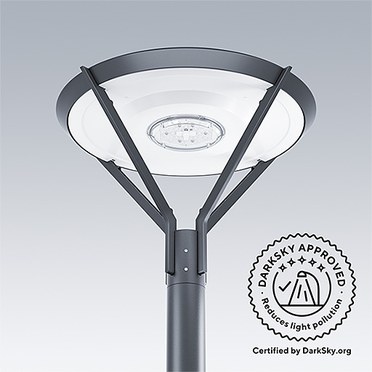

Post top lantern with a distinctive design and lighting signature

  • IDA Dark Sky Approved
  • *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
  • With conical bowl and prismatic crown for reduced glare and distinctive appearance
  • With flat enclosure for minimum upward lighting, preserving dark skies
  • Connectivity with Zhaga socket
  • Choice of dimming options and controls to reduce energy consumption and preserve dark skies
  • OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, colour...). See myProduct for configuration options

Materials and Finish

Base and arms: die cast aluminium (AS9U3, LM24 equivalent, EN AC-46000, standard corrosion class C3).
Canopy: spun aluminium
Finish: texturised anthracite (close to RAL7043), Choice of RAL colors via Myproduct
Diffuser: clear UV stabilised PC
Screw fixings: stainless steel

Installation and Mounting

Suitable for mounting on top Ø76mm or Ø60mm, spigot internal length: 100mm. Recommended height: 3/4m. Equipped with cable gland or pre-wired with HO5VVF cable. Spare drivers and LED modules available. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

Specification

To specify state:
Post top decorative lantern with 4 brackets, 2 different bowl enclosures : one conical with prismatic crown for distinctive lighting signature, the second with a flat enclosure to minimize lighting pollution. A choice of optics, controls and Zhaga connectivity addressing urban applications like parks, plazas, streets.
As Thorn Avenue F2.

New Product
LumExpress Product
eControl Product

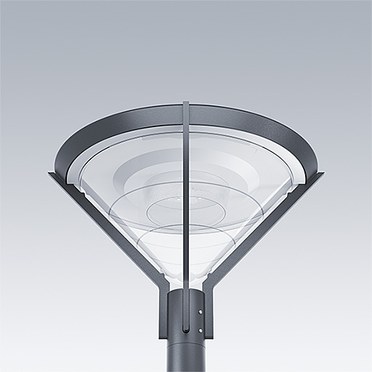

▼ Avenue F2 with conical bowl

DescriptionLuminaire power (W)Luminaire output (lm)   TypeWt (kg)SAP Code
AVF 18L35-730 RS CL BS 3550 CL1 CON ->212631LED9.0096265462
AVF 18L35-730 RS CL BS 3550 CL2 CON ->212631LED9.0096265448
AVF 18L35-730 RS CL BS 3550 CL2 N4M ->212631LED9.4096265451
AVF 18L35-730 WST CL BS 3550 CL1 CON ->212575LED9.3096265463
AVF 18L35-730 WST CL BS 3550 CL2 CON ->212575LED9.3096265455
AVF 18L35-730 WST CL BS 3550 CL2 N4M ->212575LED9.7096265458
AVF 18L35-740 RS CL BS 3550 CL1 CON ->212886LED9.0096260128
AVF 18L35-740 RS CL BS 3550 CL2 CON ->212886LED9.0096260060
AVF 18L35-740 RS CL BS 3550 CL2 N4M ->212886LED9.4096260063
AVF 18L35-740 WST CL BS 3550 CL1 CON ->212824LED9.3096260231
AVF 18L35-740 WST CL BS 3550 CL2 CON ->212824LED9.3096260097
AVF 18L35-740 WST CL BS 3550 CL2 N4M ->212824LED9.7096260100
AVF 18L50-730 RS CL BS 3550 CL1 CON ->293624LED9.0096265461
AVF 18L50-730 RS CL BS 3550 CL2 CON ->293624LED9.0096265449
AVF 18L50-730 RS CL BS 3550 CL2 N4M ->293624LED9.4096265452
AVF 18L50-730 WST CL BS 3550 CL1 CON ->293547LED9.3096265464
AVF 18L50-730 WST CL BS 3550 CL2 CON ->293547LED9.3096265456
AVF 18L50-730 WST CL BS 3550 CL2 N4M ->293547LED9.7096265459
AVF 18L50-740 RS CL BS 3550 CL1 CON ->293974LED9.0096260127
AVF 18L50-740 RS CL BS 3550 CL2 CON ->293974LED9.0096260061
AVF 18L50-740 RS CL BS 3550 CL2 N4M ->293974LED9.4096260064
AVF 18L50-740 WST CL BS 3550 CL1 CON ->293890LED9.3096260232
AVF 18L50-740 WST CL BS 3550 CL2 CON ->293890LED9.3096260098
AVF 18L50-740 WST CL BS 3550 CL2 N4M ->293890LED9.7096260101
AVF 18L70-730 RS CL BS 3550 CL1 CON ->404860LED9.1096265443
AVF 18L70-730 RS CL BS 3550 CL2 CON ->404860LED9.0096265450
AVF 18L70-730 RS CL BS 3550 CL2 N4M ->404860LED9.4096265453
AVF 18L70-730 WST CL BS 3550 CL1 CON ->404757LED9.3096265454
AVF 18L70-730 WST CL BS 3550 CL1 CON ->404757LED9.2096265445
AVF 18L70-730 WST CL BS 3550 CL2 CON ->404757LED9.3096265457
AVF 18L70-730 WST CL BS 3550 CL2 N4M ->404757LED9.7096265460
AVF 18L70-740 RS CL BS 3550 CL1 CON ->405331LED9.1096260021
AVF 18L70-740 RS CL BS 3550 CL1 CON ->405331LED9.0096260059
AVF 18L70-740 RS CL BS 3550 CL2 CON ->405331LED9.0096260062
AVF 18L70-740 RS CL BS 3550 CL2 N4M ->405331LED9.4096260065
AVF 18L70-740 WST CL BS 3550 CL1 CON ->405217LED9.3096260096
AVF 18L70-740 WST CL BS 3550 CL1 CON ->405217LED9.2096260033
AVF 18L70-740 WST CL BS 3550 CL2 CON ->405217LED9.3096260099
AVF 18L70-740 WST CL BS 3550 CL2 N4M ->405217LED9.7096260102
AVF 18L70-740 WST CL PM CL1 CON T76 ANT405217LED9.3096260034
