  • EP 445 — EP445 36L70-827 CD-A BPS CL2 W5M MTP

EP 445 / EP445 36L70-827 CD-A BPS CL2 W5M MTP

96631761

▼ Data Sheet

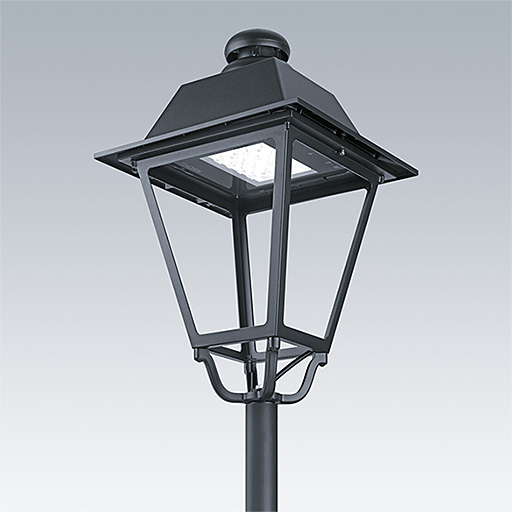

A 19th Century style lantern with 36 LEDs with switchable drive current and Street & Comfort optic. Post top mounting. Equipped with power reduction circuit, profile selected by rotary switch. Class II electrical, IP66, IK08. Body: die-cast aluminium, painted black (close to RAL9005) textured. Enclosure: 4mm thick extra clear glass. Pre-wired with 5m cable. Complete with 2700K LED

Dimensions: 436 x 436 x 695 mm
Luminaire input power: 78 W
Weight: 9.7 kg
Scx: 0.19 m²

Mode selection
  • Lamp position:700mA
  • Light Source:LED
  • Luminaire luminous flux*:7340 lm
  • Luminaire efficacy*:94 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L80 100000 h at 25 °C
  • Ballast:1x EL2
  • Luminaire input power*:78 W
  • Dimming:BP2

▼ Photometry

Photometric configuration
