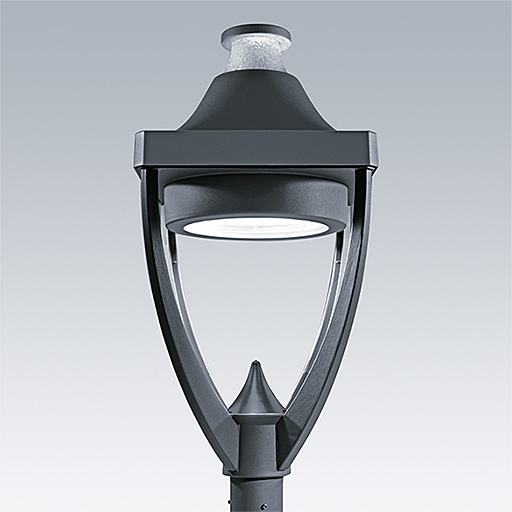

Legend / LEGEND 36L70 NR 722 BP CL2 T60 U1

96669728

▼ Data Sheet

A modern heritage post top LED lantern with closed optic. Electronic,. Class II electrical, IP65, IK08. Body: die-cast aluminium powder coated grey 900 textured finish (close to RAL 7043). Enclosure: toughened glass. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode. Complete with 2200K LED.

Dimensions: 446 x 446 x 999 mm
Luminaire input power: 77 W
Weight: 17.5 kg
Scx: 0.14 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:7243 lm
  • Luminaire efficacy*:94 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96271331 DRV OS OT 90W 1.05A 186V D #1A0 4DIMLT2
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:77 W Power factor = 0.97
