  • Legend — LEGEND LED 36L50 RC 727 BP CL2 MSU34G U1

Legend / LEGEND LED 36L50 RC 727 BP CL2 MSU34G U1

96633428

▼ Data Sheet

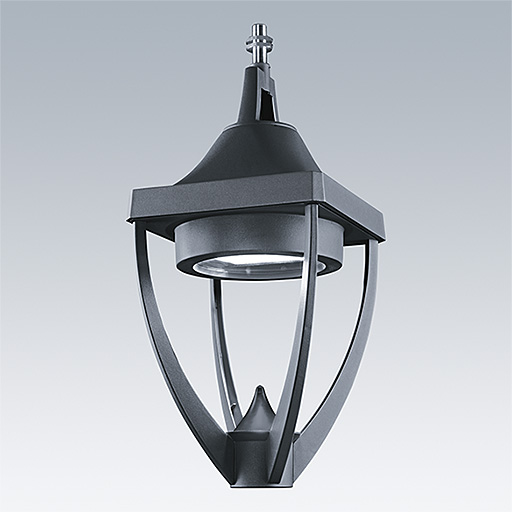

A modern heritage Suspended through 34G. LED lantern with closed optic. Electronic,. Class II electrical, IP65, IK08. Body: die-cast aluminium powder coated grey 900 textured finish (close to RAL 7043). Enclosure: toughened glass. Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode. Complete with 2700K LED.

Dimensions: 446 x 446 x 1004 mm
Luminaire input power: 55 W
Weight: 16.5 kg
Scx: 0.14 m²

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:6081 lm
  • Luminaire efficacy*:111 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 87500878 LCO 60/200-1050/100 NF C ADV3
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated useful life (B10)*:L90 100000 h at 25 °C
  • Luminaire input power*:55 W Power factor = 0.95

▼ Photometry

Photometric configuration
