Plurio / PLD D 18L50-740 R/S BS 3550 T60 CL1 GY

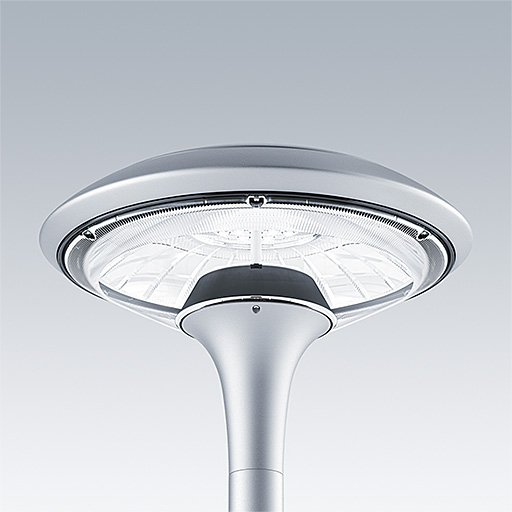

Plurio Direct: A decorative post-top LED lantern with radially symmetric distribution. LED driver with 18 LEDs driven at 500mA. Class I electrical, IP66, IK08. Base: cast aluminium, powder coated silver-grey. Canopy: disc shape, aluminium, textured silver-grey. Diffuser: UV stabilised, clear polycarbonate with anti-glare prisms. Direct, lens based optic with internal reflector. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 4000K LED. Post top mounting to Ø60mm column.

Upward lighting emissions below 1%.

Dimensions: Ø618 x 453 mm
Luminaire input power: 27.9 W
Luminaire luminous flux: 3747 lm
Luminaire efficacy: 134 lm/W
Weight: 11 kg
Scx: 0.151 m²

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:3747 lm
• Luminaire efficacy*:134 lm/W
• Colour Rendering Index min.:70
• Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
• Correlated colour temperature*:4000 Kelvin
• Chromaticity tolerance (initial MacAdam):5
• Rated useful life (B10)*:L95 100000 h at 25 °C
• Luminaire input power*:27.9 W
• Dimming:BP2
