Urba Bollard
Stylish yet robust bollard enhancing urban areas

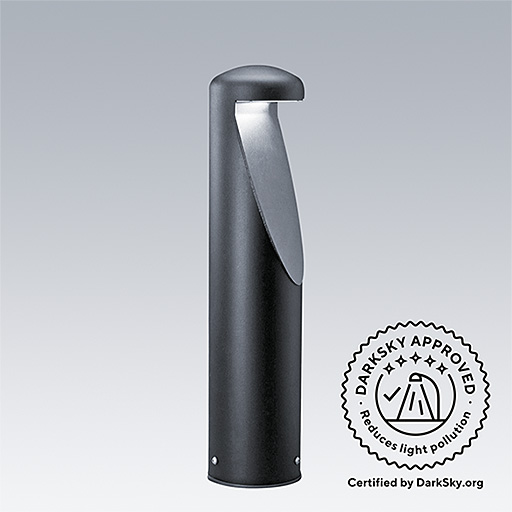

- IDA Dark Sky Approved
- *IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.
- Contemporary design which is easy to integrate into urban environments
- Robust, solid shape provides vandal resistant solution
- A light distribution with an optimised ULOR of 0 and asymmetric optic which reduces obtrusive light and glare
- LEDs offer low energy consumption, long lifetime and reduced maintenance
Materials and Finish
Body and bezel: low carbon steel SS1142 : SS-EN 10130 material DC01. Cataphoresis treatment.
Diffuser: clear 5mm polycarbonate plate
Body and bezel colours: black (RAL 9005)
Installation and Mounting
Flange mounted. 500m root to be fixed into concrete base. 800mm root to be fixed into the ground. Access door for connection box (not provided).
Specification
To specify state:
Decorative steel bollard with clear diffuser and asymmetrical light distribution.
As Thorn Urba.
New Product
LumExpress Product
eControl Product
▼ Urba Body
| Description | Luminaire power (W) | Luminaire output (lm) | Type | Wt (kg) | SAP Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| URBA BOLLARD 4L105 730 CL1 | 15 | 1009 | LED | 12.10 | 96275589 | ||||
| URBA BOLLARD 4L105 730 CL2 | 15 | 1009 | LED | 12.90 | 96275588 | ||||
| URBA BOLLARD 4L105 740 CL1 | 15 | 1107 | LED | 12.00 | 96275591 | ||||
| URBA BOLLARD 4L105 740 CL2 | 15 | 1107 | LED | 12.80 | 96275590 |
▼ Urba Base
| Description | Wt (kg) | SAP Code | |||||||
|---|---|---|---|---|---|---|---|---|---|
| URBA BOLLARD BASE MGR 500 | 6.35 | 96275593 | |||||||
| URBA BOLLARD BASE MGR 800 | 9.50 | 96275594 | |||||||
| URBA BOLLARD BASE MPL | 2.40 | 96275592 |
