  • Urba Bollard — URBA BOLLARD 4L105 730 CL1

Urba Bollard / URBA BOLLARD 4L105 730 CL1

96275589

▼ Data Sheet

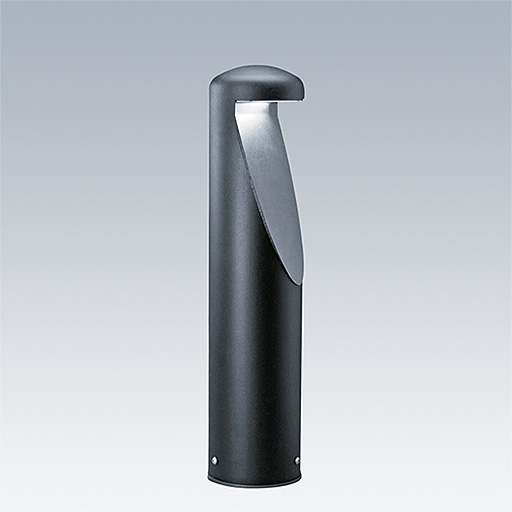

A decorative LED bollard. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body and bezel: low carbon steel, electro-plated zinc, finished black (RAL 9005). Diffuser: clear 5mm polycarbonate plate. Flange or root mounted using bases to be ordered separately. Complete with 3000K LED.

Dimensions: Ø200 x 970 mm
Luminaire input power: 15 W
Luminaire luminous flux: 1009 lm
Luminaire efficacy: 67 lm/W
Weight: 12.1 kg

Mode selection
  • Lamp position:STD - standard
  • Light Source:LED
  • Luminaire luminous flux*:1009 lm
  • Luminaire efficacy*:67 lm/W
  • Colour Rendering Index min.:70
  • Ballast:1 x 96277445 DRV TC ATPR 40W 1.05A 44V F #CC SC BI
  • Correlated colour temperature*:3000 Kelvin
  • Rated useful life (B10)*:L85 100000 h at 25 °C
  • Luminaire input power*:15 W
  • Dimming:FO
  • Total harmonic distortion (THD):15.95 %

▼ Photometry

Photometric configuration
