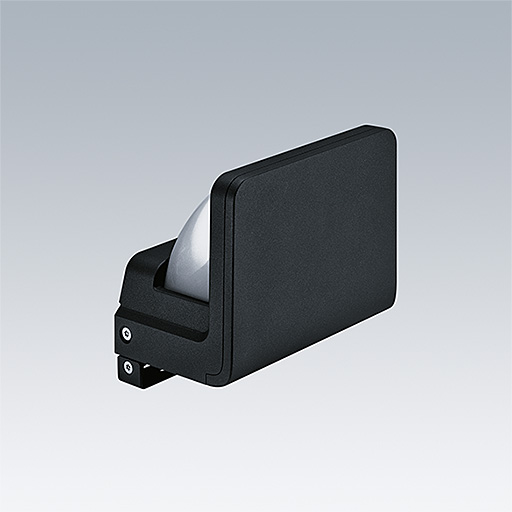

Raze Architectural / RAA L 1L50-827 HFX 6K MSF BK

A compact, surface mounted, LED wall grazer, incorporating Thorn's Flat beam® technology. 1 LED driven at 500mA. Integral DALI dimmable LED driver included. Class II electrical, IP66, IK08. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured black. Bowl: UV stablised polycarbonate, semi-frosted. Fasteners: stainless steel. Complete with 2700K LED.

S version driver capable of supplying up to three luminaires.
MSF variant with adjustable tilt up to ±15°.
MWA variant flush mounting.
6kV surge protection as standard. Pre-wired.

Dimensions: 204 x 220 x 148 mm
Luminaire input power: 21 W
Luminaire luminous flux: 1371 lm
Luminaire efficacy: 65 lm/W
Weight: 2.85 kg

Mode selection

Mode selectionSTD - standard

• Lamp position:STD - standard
• Light Source:LED
• Luminaire luminous flux*:1371 lm
• Luminaire efficacy*:65 lm/W
• Colour Rendering Index min.:80
• Ballast:1 x 28003160 LCO 40/200-1050/64 o4a NF C EXC3
• Correlated colour temperature*:2700 Kelvin
• Chromaticity tolerance (initial MacAdam):3
• Rated useful life (B10)*:L70 100000 h at 25 °C
• Luminaire input power*:21 W
• Dimming:DaliDim
