Arendal Sports Park, Norway
- Lamp efficacy
Lamp efficacy
Ensuring the lamp efficiently converts electricity into light (lm/W).
- Ballast classification
Ballast classification
Controlling the electricity supply to the lamp (Energy Efficiency Index).
- Luminaire distribution
Luminaire distribution
Controlling light emission using optics which bend and shape the light to the correct location.
- System efficacy
System efficacy
Combining optical and thermal control within the luminaire (luminaire lm/W).
- Presence/absence detection
Presence/absence detection
Presence: Lights automatically turn on/off with movement. Absence: Lights automatically turn off and must be manually switched on.
- Daylight detection
Daylight detection
Artificial lighting which responds to the natural light conditions.
- Constant illuminance
Constant illuminance
A function designed to produce correct light levels for the duration of the maintenance period.
- Task-scene setting
Task-scene setting
Allowing the user to set scenes and adapt the lighting to different tasks.
- Timed off
Timed off
Automatic cut-off can be installed to turn all lights off during unoccupied hours.
- Task lighting
Task lighting
Lighting task areas with the correct amount of light.
- Zoning of lighting
Zoning of lighting
Lighting is zoned according to area use.
- Maintenance schedule
Maintenance schedule
Maintenance must be performed in response to product age, performance and environment.
- Waste light
Waste light
Eliminating waste light which does not hit the intended target.
- Reflectance
Reflectance
Taking advantage of light which is reflected from the surface within the space.
- Visible smart metering
Visible smart metering
Results of actions can be quickly seen as increased or decreased energy use to encourage responsible energy consumption.
Clan C LED chosen for the outdoor lighting at Arendal Sports Park
Sør Amfi Arendal in Norway was completed in August 2012. The facilities, which are a joint project shared by the city of Arendal, Aust-Agder and the sports community, consist of an indoor tennis hall, sports hall and gymnasium, plus an administration building, VIP rooms and fitness centre. Outside, facilities include tennis and volleyball courts, as well as parking areas and landscaped features.

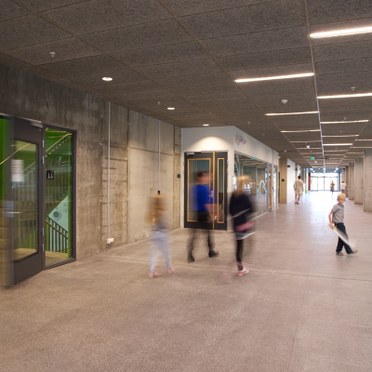

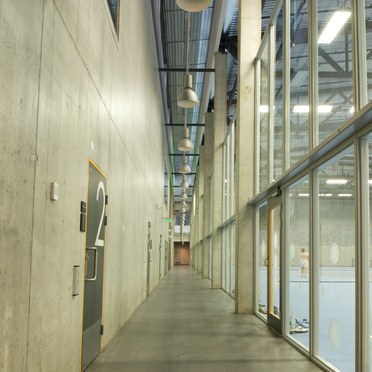

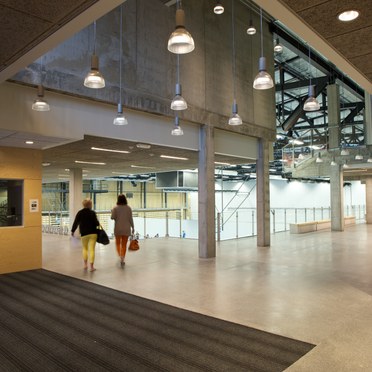

In cooperation with electrical contractors Agder El.Installasjon AS, Thorn supplied the outdoor and indoor lighting, primarily for the common areas where people gather and move around. The contractor and architect's design consultant played a leading role in the choice of luminaires.
Of the seven luminaires selected, Clan C LED is used in the car park and walkways to the building, as well as the volleyball, skate and tennis courts. Chosen for its subtle, modern properties, Clan C LED offers a wide and consistent design theme covering three bracket collections, two optics and 15 lamps. Clan C LED additionally provides street or asymmetrical lighting distributions and includes dimming and control options to optimise energy consumption.
The state-of-the-art LED versions chosen for Sør Amfi Arendal(39W, 58W) comply with EN13201 and have an expected lifetime of 50,000 hours (@L80, Ta 25°C). Integrated dimming further reduces energy consumption by up to 50 per cent in comparison to aged installations, with no compromise on lighting levels or the quality of light.
Clan C LED delivers light where it is needed without spill and by using fewer lanterns. The precision optical design around individual LEDs gives better spacing and uniformity compared to more conventional light sources.
The installation at Sør Amfi Arendal additionally features the Identification Visibility Safety (IVS) system to enhance pedestrian safety with a dedicated double asymmetric optic. The use of additional signaling makes it easy for drivers to see pedestrians on the pavement and kerb from a distance, while pedestrians are able to clearly view the pavement surface, obstructions and other pedestrians. The IVS system is mounted at the same height (between 4 and 7m) and uses the same consistent body design throughout the scheme for total unification.
Paal Dokkedal, Agder El. Installasjon AS says: "We are very satisfied with all the outdoor and indoor luminaires provided by Thorn Lighting. They complement the modern environment we have created here while minimising energy consumption and providing quality light at Sør Amfi Arendal."
Facts
- The following luminaires were selected: Base LED, Cruz LED, Glacier II LED, EquaLine LED, D-CO LED, Clan LED and Band 2
- For indoor lighting control, simple stand-alone solutions from Thorn are among the systems used, which means the individual areas can be controlled independently to each other. They include SwitchLite, SensaDigital and SensaDAY.
- The lighting has been delivered in cooperation with electrical contractor AgderEl.installasjon.
